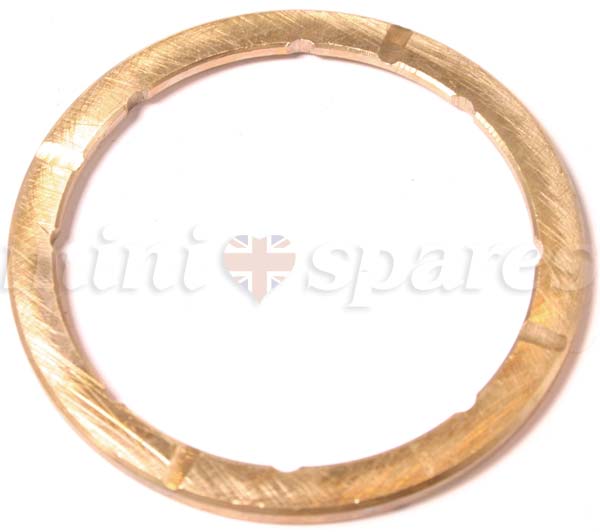

Primary gear thrust washer 1275cc .112″ to .114″

Primary gear thrust washers are made in varying sizes to take up the play.Standard gap size should be between 3-6 thou. See DAM6486, DAM6487, DAM6488, DAM6489 and DAM6492 for alternatives. This type is for the 1275cc crankshaft only which has a raised step for the primary gear to sit on. Race applications can be increased plus 3 thou. Thrust washer 0.112-114”(2.84-2.89mm). The measurement is taken as plus or minus one to the size hence the two thou tolerance on each part number.
